Eye Bolt
Eye bolts are a fastener with a ring on top, and thread at the tail below. They feature an extremely high bearing capacity, and will retain their shape even under high pressure fastening of other parts. Custom eye bolts are used in a variety of applications, including:
- Home construction projects
- Outdoor and wet applications
- inline loading, limited side loading for pulling and lifting
We are able to offer special bolts with tortuous rings, and made of different materials, including stainless steel in grades 2, 5 and 8, aluminum alloy, brass, and silicon bronze.

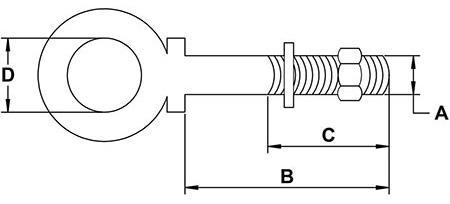

Parameter
| Size (A) | Shank Length (B) | Thread Length (C) | Eye Diameter (D) | WLL (lbs) |
| 1/4" - 20 | 2 | 1.5 | 0.5 | 500 |
| 1/4" - 20 | 4 | 2.5 | 0.5 | 500 |
| 5/16" - 18 | 4-3/8 | 2.5 | 0.63 | 800 |
| 3/8" - 16 | 2-5/8 | 1.62 | 0.75 | 1200 |
| 3/8" - 16 | 4-1/2 | 2.5 | 0.75 | 1200 |
| 1/2" - 13 | 1-1/2 | 1.25 | 1 | 2150 |
| 1/2" - 13 | 3-1/4 | 1.5 | 1 | 2150 |
| 1/2" - 13 | 6 | 3 | 1 | 2150 |
