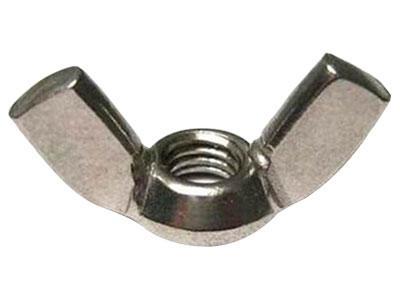

Wing Nut

Wing nuts are a common nut with metal wings on both sides, which can be fastened by hand without the need for any special tools. We use different manufacturing techniques to produce cold forged wing nuts, die cast wing nuts, and stamped wing nuts. Cold-forged wing nuts are used in a variety of applications including access panels, adjustable furniture, marine hardware, or other places where torque is greater than that which can be achieved with human pressure is not needed.

Materials: 18-8 stainless steel (300 series), 316 stainless steel, aluminum, brass, silicon bronze, and steel (zinc and nickel plated). We can also offer them in many different styles of plating such as black zinc, black oxide, zinc yellow, and many more.

Parameter
Parameter
Wing Nuts, Cold Forged
Nominal Size or Basic Major Diameter of Thread Threads Per Inch A B C D E G
Wing Spread Wing Height Wing Thickness Between Wings Boss Diameter Boss Height
Max Min Max Min Max Min Max Min Max Min Max Min
6 0.1380 32 & 40 0.72 0.59 0.41 0.28 0.11 0.07 0.21 0.17 0.33 0.29 0.14 0.10
8 0.1640 32 & 36 0.91 0.78 0.47 0.34 0.14 0.10 0.27 0.22 0.43 0.39 0.18 0.14
10 0.1900 24 & 32
1/4 0.2500 20 & 28 1.10 0.97 0.57 0.43 0.18 0.14 0.33 0.26 0.50 0.45 0.22 0.17
5/16 0.3125 18 & 24 1.25 1.12 0.66 0.53 0.21 0.17 0.39 0.32 0.58 0.51 0.25 0.20
3/8 0.3750 16 & 24 1.44 1.31 0.79 0.65 0.24 0.20 0.48 0.42 0.70 0.64 0.30 0.26
7/16 0.4375 14 & 20 1.94 1.18 1.00 0.87 0.33 0.26 0.65 0.54 0.93 0.86 0.39 0.35
1/2 0.5000 13 & 20
5/8 0.6250 11 & 18 2.76 2.62 1.44 1.31 0.40 0.34 0.9 0.8 1.19 1.13 0.55 0.51
3/4 0.7500 10 & 16
