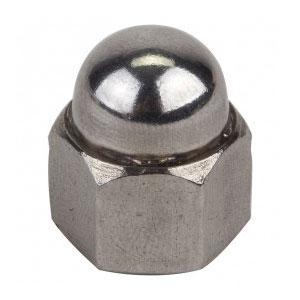

Cap Nut
Cap nuts, also called push-on cap nut fasteners, are hex nut with a domed cap, which is used to cover protruding sections of a screw or screw bolt, thus achieving both protection and decorative effects. We offer cap nuts in a size of M1 to M10, and also offer rubber caps on top. The cap nut is easy to operate, requiring only human hands and spanners to complete fastening. They are widely used in the following fields:
- Building interiors
- Boats
- Cars
- Airplanes
- Electrical panels
- Cabinets
- toys
In order to obtain the ornamentation effect a customer requires, we can also dye the cap nuts using an electroplating process.
Materials: brass, steel with a nickel plate, 18-8 stainless steel, steel black oxide, plain steel, and black zinc.
Parameter
| TECHNICAL INFORMATION | ||||
| THREAD | E min | S | M | H |
| M4 | 7.66 | 7 | 2.9 | 9.6 |
| M5 | 8.79 | 8 | 4.4 | 10.5 |
| M6 | 11.05 | 10 | 4.9 | 12.0 |
| M8 | 14.38 | 13 | 6.44 | 14.0 |
| M10 | 18.9 | 16 | 8.04 | 18.1 |
| M12 | 21.1 | 18 | 10.37 | 22.5 |
| M16 | 26.75 | 24 | 14.1 | 27.5 |
| M20 | 30.0 | - | 16.9 | 35.0 |
| All information is for guidance purposes only. | ||||
