Self-tapping Screw
The self-tapping screw is used to fasten metal and nonmetal materials such as plastic, wood, cork, copper, aluminum alloy and so on. The self-tapping screw is characterized by its high-speed installation and high connection reliability. The material of the self-tapping screw can be chosen among stainless steel, carbon steel, copper, and aluminum. Carbon steel is most commonly used with the code of 1018, 1022 10B21. And the strength of screws can reach the grade of 8.8.

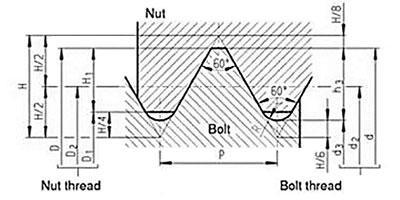

| ISO Metric Coarse | PITCH | Major Diameter | Root Radius | Pitch Diameter | Minor Diameter male thread | Minor Diameter female thread | Thread Height male thread | Thread Height female thread | Tap Drill |
| P | d=D | r | d2=D2 | d3 | D1 | h3 | H1 | ||
| M1 | 0.25 | 1.00 | 0.036 | 0.838 | 0.693 | 0.729 | 0.153 | 0.135 | 0.75 |
| M1.1 | 0.25 | 1.10 | 0.036 | 0.938 | 0.793 | 0.829 | 0.153 | 0.135 | 0.85 |
| M1.2 | 0.25 | 1.20 | 0.036 | 1.038 | 0.893 | 0.929 | 0.153 | 0.135 | 0.95 |
| M1.4 | 0.30 | 1.40 | 0.043 | 1.205 | 1.032 | 1.075 | 0.184 | 0.162 | 1.10 |
| M1.6 | 0.35 | 1.60 | 0.051 | 1.373 | 1.171 | 1.221 | 0.215 | 0.189 | 1.25 |
| M1.8 | 0.35 | 1.80 | 0.051 | 1.573 | 1.371 | 1.421 | 0.215 | 0.189 | 1.45 |
| M2 | 0.40 | 2.00 | 0.058 | 1.740 | 1.509 | 1.567 | 0.245 | 0.217 | 1.60 |
| M2.2 | 0.45 | 2.20 | 0.065 | 1.908 | 1.648 | 1.713 | 0.276 | 0.244 | 1.75 |
| M2.5 | 0.45 | 2.50 | 0.065 | 2.208 | 1.948 | 2.013 | 0.276 | 0.244 | 2.05 |
| M3 | 0.50 | 3.00 | 0.072 | 2.675 | 2.387 | 2.459 | 0.307 | 0.271 | 2.50 |
| M3.5 | 0.60 | 3.50 | 0.087 | 3.110 | 2.764 | 2.850 | 0.368 | 0.325 | 2.90 |
| M4 | 0.70 | 4.00 | 0.101 | 3.545 | 3.141 | 3.242 | 0.429 | 0.379 | 3.30 |
| M4.5 | 0.75 | 4.50 | 0.108 | 4.013 | 3.580 | 3.688 | 0.460 | 0.406 | 3.80 |
| M5 | 0.80 | 5.00 | 0.115 | 4.480 | 4.019 | 4.134 | 0.491 | 0.433 | 4.20 |
| M6 | 1.00 | 6.00 | 0.144 | 5.350 | 4.773 | 4.917 | 0.613 | 0.541 | 5.00 |
| M7 | 1.00 | 7.00 | 0.144 | 6.350 | 5.773 | 5.917 | 0.613 | 0.541 | 6.00 |
| M8 | 1.25 | 8.00 | 0.180 | 7.188 | 6.466 | 6.647 | 0.767 | 0.677 | 6.80 |
| M9 | 1.25 | 9.00 | 0.180 | 8.188 | 7.466 | 7.647 | 0.767 | 0.677 | 7.80 |
| M10 | 1.50 | 10.00 | 0.217 | 9.026 | 8.160 | 8.376 | 0.920 | 0.812 | 8.50 |
| M11 | 1.50 | 11.00 | 0.217 | 10.026 | 9.160 | 9.376 | 0.920 | 0.812 | 9.50 |
| M12 | 1.75 | 12.00 | 0.253 | 10.863 | 9.853 | 10.106 | 1.074 | 0.947 | 10.20 |

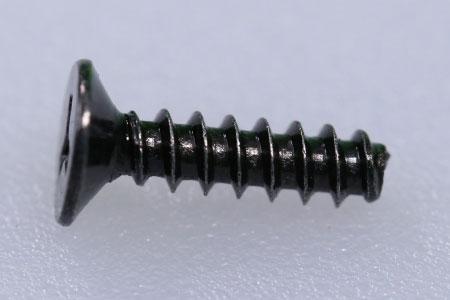

Y head black Sheet metal self-tapping screw

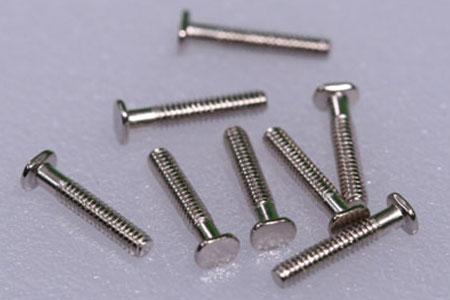

flat head self-tapping screw

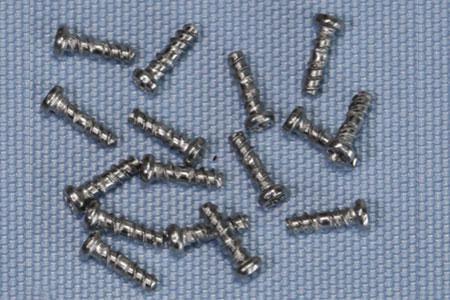

stainless steel self-tapping screw

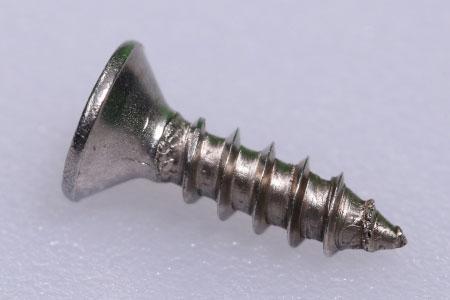

flat head thread-forming self-tapping screw

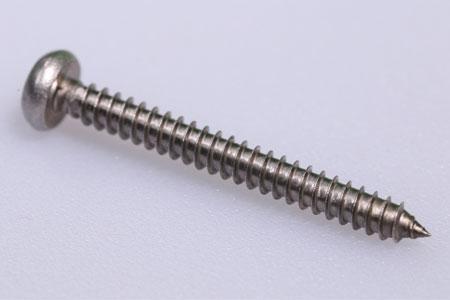

pan head thread self-tapping screw

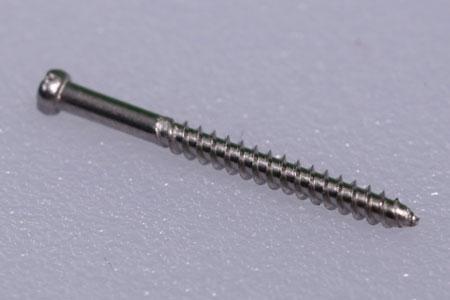

shoulder self-tapping screw

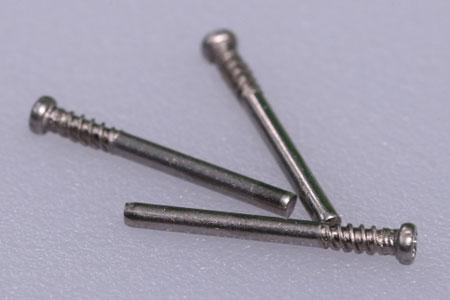

partially threaded self-tapping screw

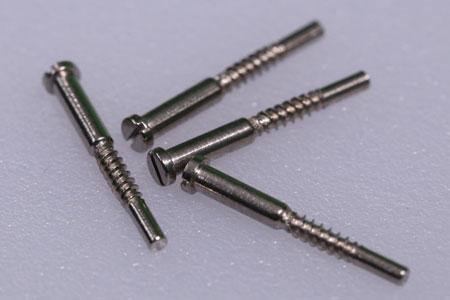

middle thread self-tapping screw

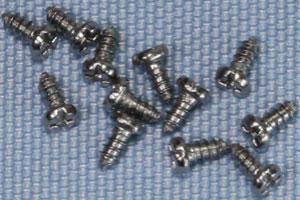

mini self-tapping screw

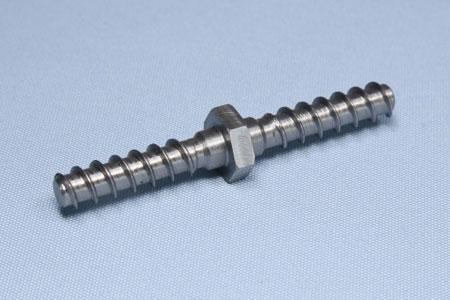

nonstandard customizing self-tapping screw
